emCON-MX8M Plus with i.MX 8M Plus from NXP

Do you have growing requirements in the areas of virtualization, multimedia and
high-speed interfaces?
The emCON-MX8M Plus meets the requirements and offers long-term availability of up to 10 years.
of up to 10 years.

In addition, emtion's software specialists provide you with in-house Board Support Packages (BSP). The Linux and Android operating systems are available for the emCON family.

Key features:

  • i.MX 8M Plus processor from NXP
  • four cores ARM Cortex-A53 and 1x ARM Cortex-M7
  • Scalable i.MX 8M Plus Quad/QuadLite/Dual
  • Neural Proccesing Unit (NPU), Image Signal Processor
  • Powerful 2D/3D graphics: Vivante GC520L, Vivante GC7000UL
  • Video quality in 1080p60 Full-HD resolution
  • Interfaces including: 2x USB3.0, PCIe, 2x GbE, LVDS, MIPI CSI-2
  • WLAN IEEE 802.11 b/g/n, Bluetooth 5.0
  • Industrial module (COM/ SOM) and available in extended temperature range
  • 4 GB LPDDR4 RAM and 16 GB NAND Flash (eMMC)
  • Scalable and long-term availability
  • Virtualization, security and fastboot optionally available

For a quick start to your application development, choose the right developer kit for you from our varied range.

Product inquiry

Documents

Functions

CPU Type

Cortex-A53 (quad core), Cortex-M7

CPU Name

i.MX8M Plus

CPU Cores

4

CPU Clock (max)

up to 1.8 GHz (A53) + 800 MHz (M7) MHz

CPU Manufacturer

NXP

eMMC NAND-Flash

16 GB GB

QSPI NOR-Flash

16 MB

LPDDR4-SDRAM

2 - 4 GB

LCD Interface (LVDS)

2 x

MIPI-CSI-2 camera interface (4 lanes)

1 x

SPDIF (digital audio)

1 x

SAI (Serial Audio Interface)

1 x

Ethernet 1000Base-T

2 x

PCIe (1 Lane)

1 x

UART LVTTL

3 x

USB Host 3.0

2 x

USB Host 3.0

2 x

I²C Interface

2 x

MMC/SDC Interface

1 x

Digital GPIO

8 x

SPI Interface

2 x

UART LVTTL (with RTS/CTS)

3 x

Digital GPIO (PWM)

8 x

RTC (battery buffered)

1 x

JTAG

1 x

-25 - 70 °C

-40 - 85 °C (extended)

Width

50 mm

Depth

82 mm

Height

10 mm

Voltage

5 V

True

Drivers

novaluefound

Dienste

novaluefound

Release Notes

Known Issues

Article

Article available: novaluefound

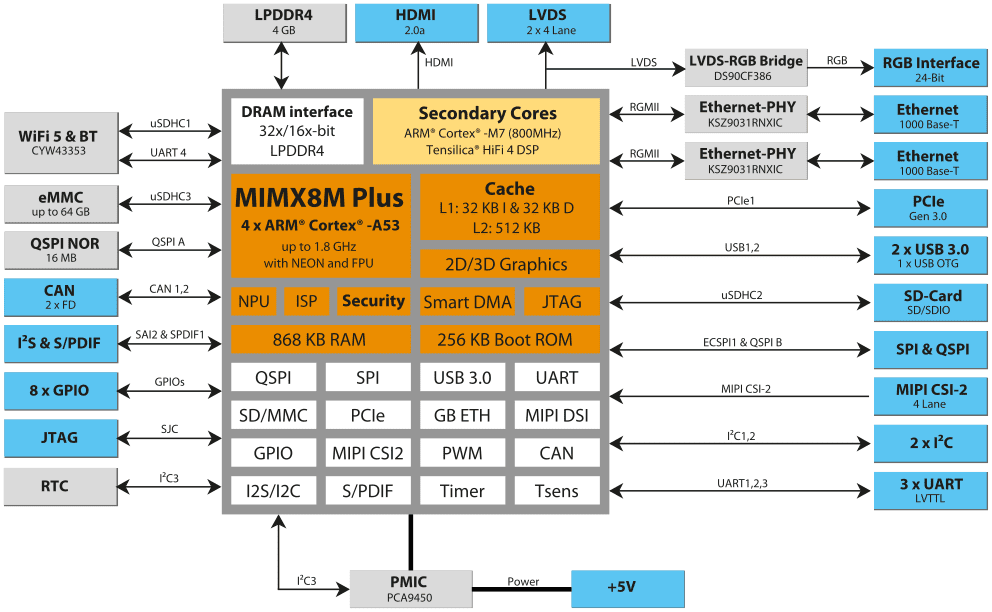

Block diagram

Downloads / Documents

Sorry, No posts.

Developer Kits

Sorry, No posts.

Accessories

Avari

emCON series compliant baseboard.
