i.MX6 Module (PCIe)

Home 9 Products 9 Computer-on-Modules 9 DIMM 9 i.MX6 Module (PCIe)

DIMM module i.MX6 (PCIe) with MCIMX6S, MCIMX6U, MCIMX6D, MCIMX6Q from NXP

Do you have growing requirements in the areas of multimedia and high-speed interfaces?

The DIMM-MX6 addresses these requirements and offers a long-term availability of up to 15 years.

emtrions software specialists also provide you with in-house board support packages (BSP).

The operating systems Linux (Yocto, Debian) and Android are available for the DIMM family.

Key features:

  • NXP processors MCIMX6S, MCIMX6U, MCIMX6D, MCIMX6Q
  • Solo, DualLite, Dual or Quad-core ARM Cortex-A9 processors
  • up to 4x 1,2GHz clock speed
  • powerful 3D graphics
  • interfaces include: PCIe, GbE, 2x CAN, camera, LCD interface (LVDS, RGB)
  • EtherCAT, PROFINET, CANopen optionally available
  • industrial module (COM/ SOM), also available in extended temperature range
  • 512 MB to 2GB RAM and up to 2GB NAND flash (SLC)
  • scalable and long-term available
  • Fastboot optionally available
  • IoT capable

Choose the right developer kit from our versatile compilation for a quick start into your application development.



Documents

Functions

CPU Cores

1-4

CPU Manufacturer

Freescale

CPU Name

i.MX6

CPU Type

Cortex-A9

CPU Clock (max)

up to 1200 MHz

DDR3-SDRAM

512 - 2048 MB

NAND-Flash

1024 - 8192 MB

NOR-Flash

8 MB

SSI Interface for Audio Codec

1 x

Camera Interface 1

1 x

Touch interface (resistive, 4-wire)

1 x

Camera Interface 2

1 x

LCD Interface (LVDS)

1 x

LCD Interface (RGB)

1 x

SPDIF (digital audio)

1 x

Ethernet 100BASE-TX

1 x

UART RS232

1 x

UART LVTTL

4 x

USB Host 2.0 high speed

1 x

USB Device 2.0 high speed

1 x

CAN LVTTL

2 x

I²C Interface

3 x

SPI Interface

1 x

Digital GPIO

10 x

MMC/SDC Interface

2 x

SATA II (3Gbps)

1 x

PCIe (1 Lane)

1 x

RTC (battery buffered)

1 x

0 - 70 °C

-20 - 85 °C (extended)

Width

67,5 mm

Depth

50 mm

Height

10 mm

up to 4x ARM NEON Co-Processor, VFPU

H.264 decode and encode

openVG 1.1

openGL ES 2.0 & 1.1, Direct3D

openCL EP

True

Drivers

novaluefound

Dienste

novaluefound

Release Notes

Known Issues

Article

Article available: novaluefound

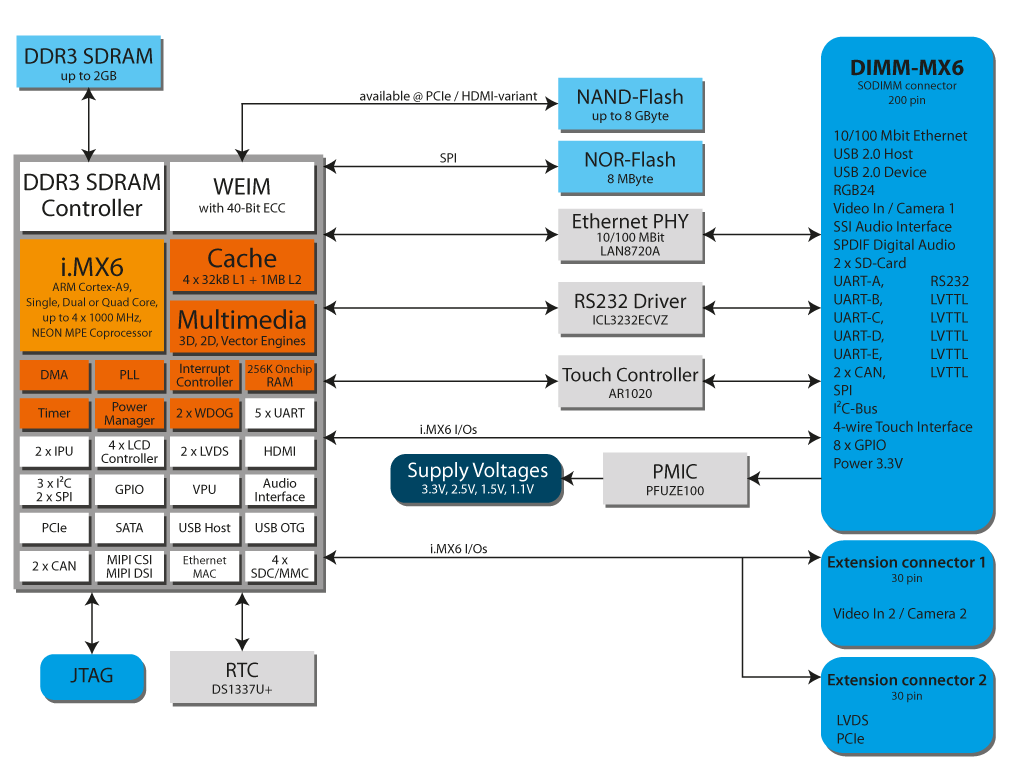

Block diagram

Downloads / Documents

DIMM-MX6 Hardware Manual

Hardware Manual for DIMM-MX6 (Quad/Dual/Single) CPU Modules

30. August 2023 - en

UART Translation Table

Overview for UART interfaces of CPU modules and baseboards.

04. September 2017 - en

GPIO Translation Table

GPIO Translation Table for DIMM-Series CPU Modules

04. September 2017 - en

PCN DIMM-MX6-PCIe R2A V1

04. September 2017 - en

DIMM-MX6 U-Boot Update Package

ATTENTION: Only update if necessary and follow the included manual...
29. August 2023 - en

emPURS on DIMM-MX6

Instruction guide and package for using emtrion’s emPURS on DIMM-MX6

29. August 2023 - en

emtrion-mx6 yocto manual

User manual for the emtrion-mx6 yocto

30. August 2023 - en

Flyer DIMM-MX6 PCI/PB/HDMI

Flyer of emtrion’s DIMM MX6 Module

30. August 2023 - en

Developer Kits

i.MX6Q Dev Kit PCIe Linux

Accessories

ADA232

Adaptation from LVTTL UARTs to RS232 with D-SUB9 connector.

Supported operating systems

Android 4.4.3 Kitkat

Yocto 2.2 Morty

U-Boot 2014.10

Debian 9 Stretch

FAQ

Configuring the Display Output for the Qt-Demo on i.MX6 with Debian (Kernel 4.9)

**Use the HDMI output on Headless i.MX6 Developer Kits for the Qt-Demo application

The Qt-Demo application is by default configured to run on the parallel display. To disable this output, add the following line on top of the file /boot/uboot_script in the Root Filesystem:

extra_args=video=VGA-1:d

The required BSP-Version is 2018-08-22 or recent.

DIMM-MX6 and CPU-Bus


Is the CPU-Bus of the i.MX6 CPU available at the SODIMM connector?

emtrion offers three variants of the DIMM-MX6 CPU Module:

  • DIMM-MX6 with HDMI interface and LCD (RGB) interface
  • DIMM-MX6-PB with HDMI interface and processor bus interface
  • DIMM-MX6-PCIe with PCIe interface and LCD (RGB) interface

DIMM-MX6 and PCIe Interface


Is the PCIe interface of the i.MX6 CPU available at the SODIMM connector?

emtrion offers three variants of the DIMM-MX6 CPU Module:

  • DIMM-MX6 with HDMI interface and LCD (RGB) interface
  • DIMM-MX6-PB with HDMI interface and processor bus interface
  • DIMM-MX6-PCIe with PCIe interface and LCD (RGB) interface
